Specifications

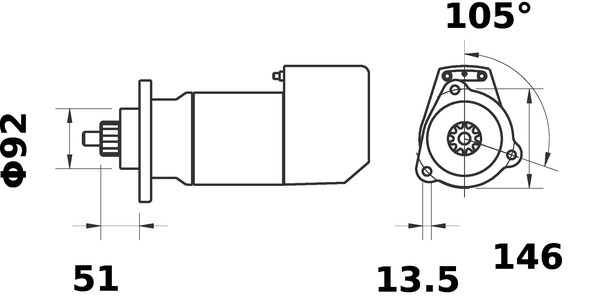

| Bore Diameter 1 (mm) | 13.5 |
| Clamp 31 | |
| Flange Diameter (mm) | 92.0. for flywheel depth [mm] 51.0 |
| Mounting Angle (degrees) | 105.0 |
| Mounting points diameter (mm) | 146.0 |
| Net Weight (g) | 18182 |
| Number of mounting bores 3 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 15.90 |
| Packaging length (cm) | 45.2 |
| Packaging width (cm) | 20.60 |
| Rated Power (kW) | 6.6 |
| Rotation Direction Clockwise rotation | |
| Supplementary Article/Info 2 with splash-water protection | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 13,5, Clamp 31, Flange Diameter [mm] 92,0, for flywheel depth [mm] 51,0, Mounting Angle [degrees] 105,0, Mounting points diameter [mm] 146,0, Net Weight [g] 18182, Number of mounting bores 3, Number of Teeth 9, Packaging height [cm] 15,90, Packaging length [cm] 45,2, Packaging width [cm] 20,60, Rated Power [kW] 6,6, Rotation Direction Clockwise rotation, Supplementary Article/Info 2 with splash-water protection, Voltage [V] 24
