Specifications

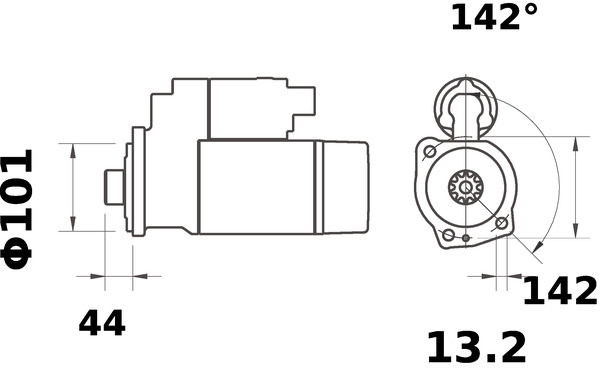

| Bore Diameter 1 (mm) | 13.2 |
| Clamp 31 | |
| Flange Diameter (mm) | 101.0. for flywheel depth [mm] 44.0 |
| Mounting Angle (degrees) | 142.0 |
| Mounting points diameter (mm) | 142.0 |
| Net Weight (g) | 12533 |
| Number of mounting bores 3 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 5.5 |
| Relay function Starter | |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 17.77 |
| Transmission Type with reduction gear | |
Bore Diameter 1 [mm] 13,2, Clamp 31, Flange Diameter [mm] 101,0, for flywheel depth [mm] 44,0, Mounting Angle [degrees] 142,0, Mounting points diameter [mm] 142,0, Net Weight [g] 12533, Number of mounting bores 3, Number of Teeth 10, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 5,5, Relay function Starter, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 17,77, Transmission Type with reduction gear, Voltage [V] 24
