Specifications

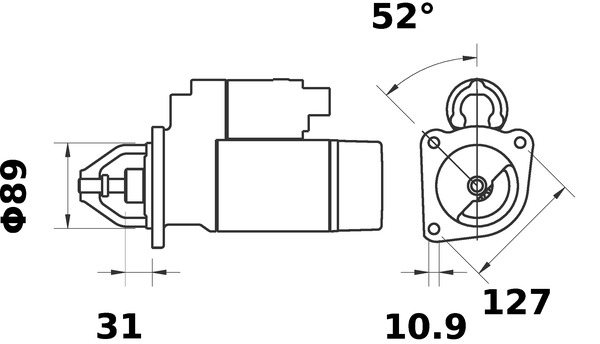

| Bore Diameter 1 (mm) | 10.9 |
| Dust Cover with dust cover | |
| Flange Diameter (mm) | 89.0. for flywheel depth [mm] 31.0 |
| Mounting points diameter (mm) | 127.0 |
| Net Weight (g) | 11296 |
| Number of mounting bores 3 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 4.0 |
| Relay function Starter | |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.36 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 10,9, Dust Cover with dust cover, Flange Diameter [mm] 89,0, for flywheel depth [mm] 31,0, Mounting points diameter [mm] 127,0, Net Weight [g] 11296, Number of mounting bores 3, Number of Teeth 9, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 4,0, Relay function Starter, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,36, Transmission Type with reduction gear, Voltage [V] 24
