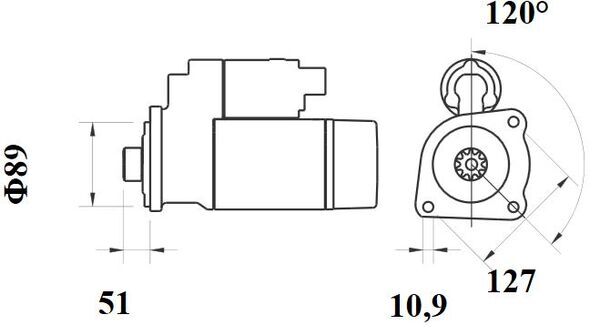

Specifications
| Bore Diameter 1 (mm) | 10.9 |
| Flange Diameter (mm) | 89.0. for flywheel depth [mm] 51.0 |
| Mounting Angle (degrees) | 120.0 |
| Mounting points diameter (mm) | 127.0 |
| Net Weight (g) | 13828 |
| Number of mounting bores 3 | |
| Number of Teeth 12 | |
| Packaging height (cm) | 15.90 |
| Packaging length (cm) | 45.2 |
| Packaging width (cm) | 20.60 |
| Rated Power (kW) | 6.5 |
| Relay function Starter | |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.65 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 89,0, for flywheel depth [mm] 51,0, Mounting Angle [degrees] 120,0, Mounting points diameter [mm] 127,0, Net Weight [g] 13828, Number of mounting bores 3, Number of Teeth 12, Packaging height [cm] 15,90, Packaging length [cm] 45,2, Packaging width [cm] 20,60, Rated Power [kW] 6,5, Relay function Starter, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,65, Transmission Type with reduction gear, Voltage [V] 24
