Starter
Starter 1 Starter 2 Starter 3
Starter System

Starter

Part No. MS 767 · SKU MS 767-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

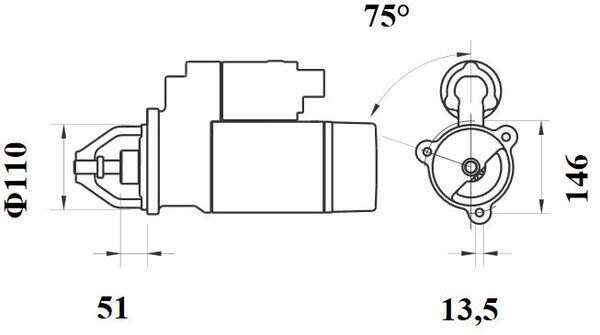

Specifications

Bore Diameter 1 (mm)13.5
Flange Diameter (mm)110. for flywheel depth [mm] 51
Mounting points diameter (mm)146
Net Weight (g)8566
Number of mounting bores 3
Number of Teeth 11
Packaging height (cm)18.80
Packaging length (cm)39.0
Packaging width (cm)21.50
Rated Power (kW)4.0
Rotation Direction Clockwise rotation
Tooth Pitch (mm)14.6
Transmission Type with reduction gear
Voltage (V)24
Bore Diameter 1 [mm] 13,5, Flange Diameter [mm] 110, for flywheel depth [mm] 51, Mounting points diameter [mm] 146, Net Weight [g] 8566, Number of mounting bores 3, Number of Teeth 11, Packaging height [cm] 18,80, Packaging length [cm] 39,0, Packaging width [cm] 21,50, Rated Power [kW] 4,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,6, Transmission Type with reduction gear, Voltage [V] 24
Fits: AUDI, DAF

Interchangeable Part Numbers

BOM-Prestolite861035 BOSCH0001231013 BOSCH0001231041 BOSCH0001364400 BOSCH0001368313 BOSCH0986017980 Bosch UP TestF042S02095 Bosch UP TestSTR-2322 DELCO REMY19070127 DELCO REMY19084020 DELCO REMYDRS0166 DELCO REMYDRS3293 FARCOM103688 HC-Cargo112055 LUCAS ELECTRICALLRS01899 VALEO 458331 VALEO458331 WAI30125N

OE Numbers — DAF

0289183 126246 1287890 1287890R 1346162 1346162R 1735788 1735788R 2165369R 289183
MakeModelType / Engine YearsCCkWHP
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
