Brake Hose

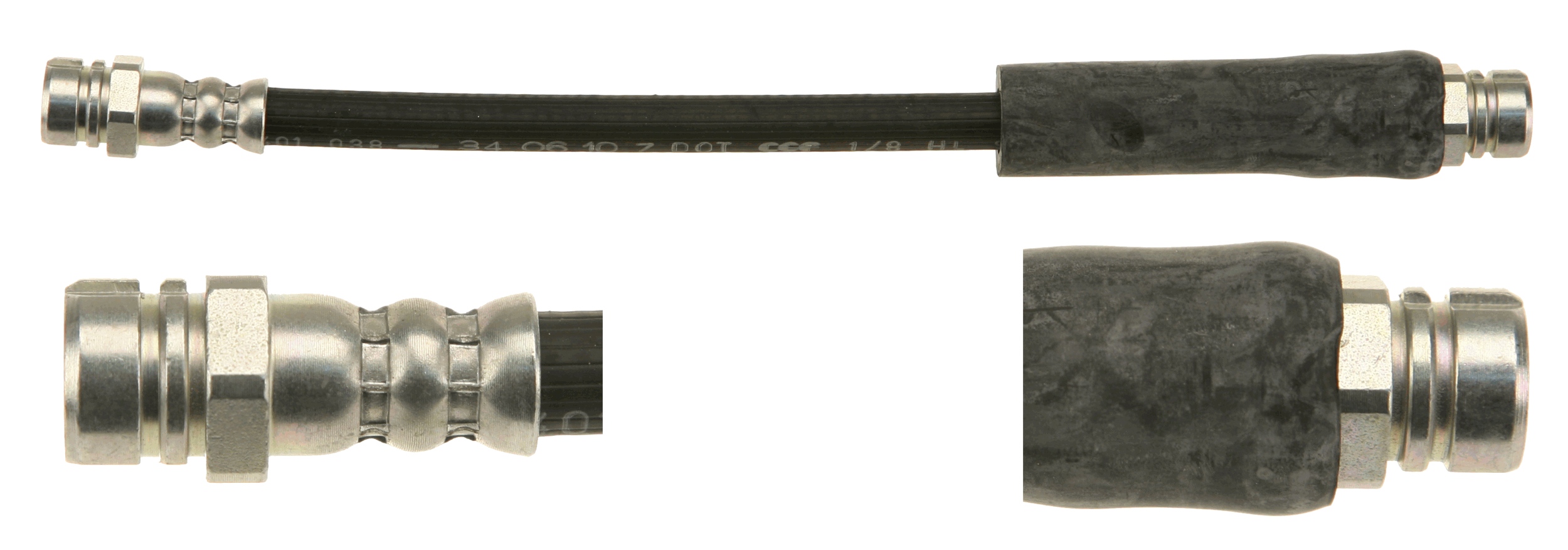

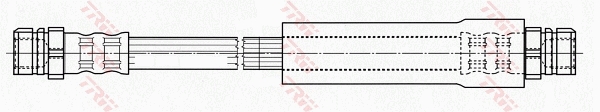

Brake Hose 1 Brake Hose 2
Braking System

Brake Hose

Part No. PHA486 · SKU PHA486-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Length (mm)260
Thread Size 1 M10x1
Thread Size 2 M10x1
Thread Type Internal Thread
Thread Type with internal thread
Length [mm] 260, Thread Size 1 M10x1, Thread Size 2 M10x1, Thread Type Internal Thread, Thread Type with internal thread
Fits: AUDI, SEAT, SKODA, VW, VW (FAW)

Interchangeable Part Numbers

ATE24.5204-0233.3 ATE83784902313 BENDIX172668B BORG & BECKBBH6914 BOSCH1 987 476 101 BOSCH1 987 476 284 Brake ENGINEERINGBH778492 BREMBOT85111 BROVEX-NELSONH5981 CEF512307 DELPHILH6459 DELPHILH6544 FEBI BILSTEIN23156 FERODOFHY2608 FIRST LINEFBH6914 FIRST LINEFBH7367 FTE235E.653E.1 FTE9240018 GIRLING9001486 HELLA8AH 355 461-091 JURID172668J LPR6T47945 MAGNETI MARELLI440019033594 MAPCO3965 MEYLE100 611 0073 MGAF5483 NK8547103 OPTIMALBSL-3637 PAGID70465 QH BeneluxBH10859 QUINTON HAZELLBFH5528 QUINTON HAZELLHBS5528 REMSA190085 REMSAG1900.85 SPIDAN339696 SWAG30923156 TEXTAR40015900 TRISCAN815029234

OE Numbers — AUDI

1K0 611 775 A 1K0 611 775 C 1K0 611 775 3C0 611 775 A

OE Numbers — SEAT

1K0 611 775 B

OE Numbers — VW

3C0 611 775
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
