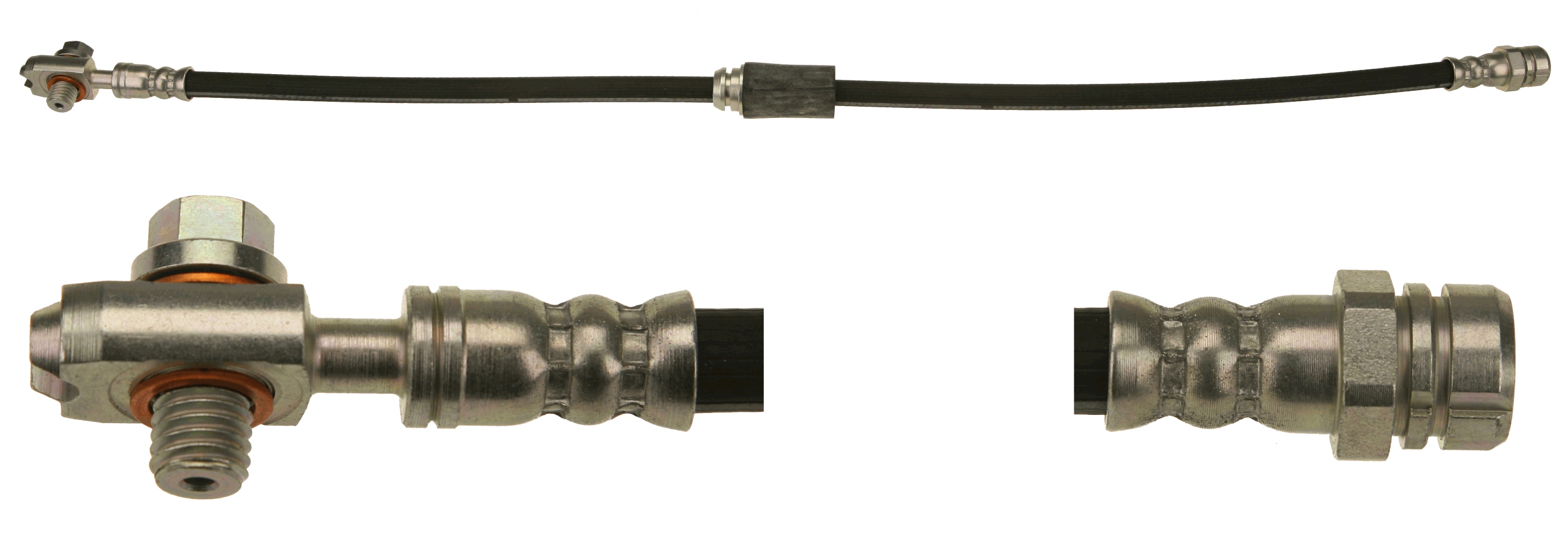

Brake Hose

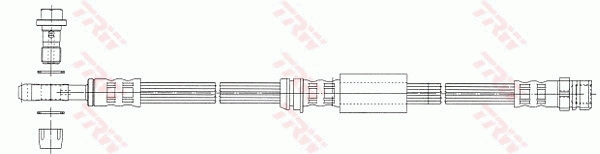

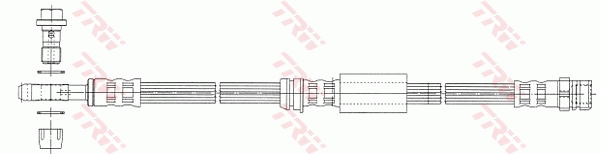

Brake Hose 1 Brake Hose 2 Brake Hose 3
Braking System

Brake Hose

Part No. PHD1014 · SKU PHD1014-TRW
Left
₱3,700.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter 2 (mm)10.15
Length (mm)575
Thread Size 1 M10x1
Thread Size 2 Banjo
Thread Type Internal Thread
Thread Type with internal thread
Diameter 2 [mm] 10,15, Length [mm] 575, Thread Size 1 M10x1, Thread Size 2 Banjo, Thread Type Internal Thread, Thread Type with internal thread
Fits: AUDI, SEAT, SKODA, SKODA (SVW), VW, VW (FAW)

Supplier Cross-References

DELPHILH6456 TEXTAR40000094201 FERODOFHY2612 ATE24514305643 BREMBOT85112 TRWPHD1014

Interchangeable Part Numbers

A.B.S.SL5572 ATE83784705583 ATE83784705633 BENDIX172667B BORG & BECKBBH7746 BOSCH 1 987 476282 BOSCH1987476282 Brake ENGINEERINGBH778479 CEF512557 CORTECO19033595 DELPHILH6732 FEBI BILSTEIN27934 FERODOFHY2665 FIRST LINEFBH6898 FTE565E.851E.1 GIRLING90041014 HELLA 8AH 355468-241 HELLA8AH355468241 JURID172667J LPR6T47889 METZGER4116203 MEYLE 100 6110071/S MEYLE1006110071S MEYLE1006110071 MEYLE 114 5250001/S MEYLE1145250001S MGAF5482 NK8547102 ORIGINAL IMPERIUM60801 PAGID70451 PEX50401 QUINTON HAZELLBFH5573 REMKAFLEX4969 sbs13308547102 SPIDAN339701 SWAG30927934 TEXTAR40094200 TRISCAN815029132

OE Numbers — AUDI 1K0 611 701

H K M

OE Numbers — AUDI

1K0611701H 1K0611701K 1K0611701M 1Q0611701D

OE Numbers — AUDI 1Q0 611 701

D

OE Numbers — VW (FAW)

1TD611701A 1TD611701

OE Numbers — VW (FAW) 1TD 611 701

A

OE Numbers — VW (FAW) 1TD 611

701
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
