Brake Hose

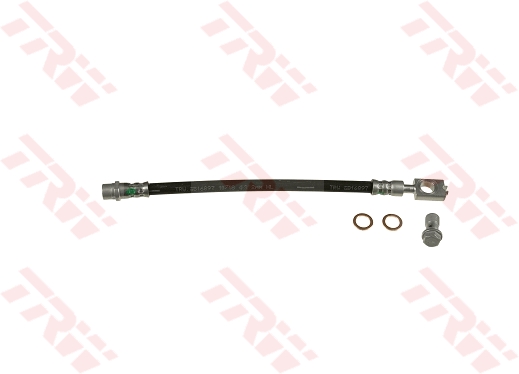

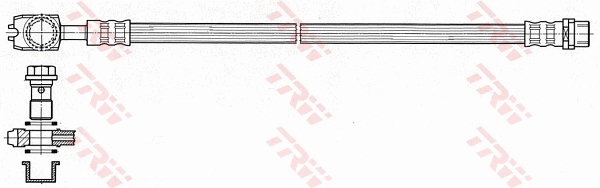

Brake Hose 1 Brake Hose 2
Braking System

Brake Hose

Part No. PHD484 · SKU PHD484-TRW
Rear Axle
₱3,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Length (mm)280
Thread Size 1 M10x1
Thread Size 2 Banjo
Thread Type Internal Thread
Thread Type with internal thread
Length [mm] 280, Thread Size 1 M10x1, Thread Size 2 Banjo, Thread Type Internal Thread, Thread Type with internal thread
Fits: AUDI, AUDI (FAW), SEAT

Supplier Cross-References

DELPHILH6108 TEXTAR40000023101 FERODOFHY2547 ATE24513802633 TRWPHD484 HELLA8AH355460151

Interchangeable Part Numbers

A.B.S.SL5568 ABEC81170ABE AKRON-MALÒ80254 APECHOS3369 BENDIX172529B BORG & BECKBBH6892 BOSCH1 987 476 944 Brake ENGINEERINGBH778628 BREMBOT85116 BROVEX-NELSONH5953 BROVEX-NELSONH5953Q CEF512117 CORTECO19032310 FEBI BILSTEIN23160 FIRST LINEFBH6892 FTE263E.864E.0 FTE9240113 GIRLING9004484 JP GROUP1161702800 JURID172529J KAGER381000 LPR6T47890 MAGNETI MARELLI440019032310 MAPCO3688 METZGER4112830 METZGER4116222 MEYLE100 611 0085/S MEYLE1006110085 MGAF5415 NK8547129 OPTIMALBSL-3618 ORIGINAL IMPERIUM60761 PAGID70448 PEX50048 QUINTON HAZELLBFH5572 QUINTON HAZELLHBS5572 REMSA190431 REMSAG1904.31 sbs13308547129 SPIDAN339704 SWAG30923160 TEXTAR40023100 TOPRAN110412 TRISCAN815029226 VAICOV104182

OE Numbers — AUDI

8E0 611 775 H 8E0 611 775 N
MakeModelType / Engine YearsCCkWHP
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 184 250
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 186 253
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 127 173
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 (8E2) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 (8E2) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 (8E2) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 Avant (8E5) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 Avant (8E5) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 Avant (8E5) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 127 173
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 Avant (8E5) 2.7 S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 160 218
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 127 173
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 125 170
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 125 170
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 120 163
AUDI A4 B6 Convertible (8H7) 2.5 TDI 2002 – 2009 2496 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 3.0 quattro 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) S4 quattro 2002 – 2009 4163 253 344
AUDI A4 B6 Convertible (8H7) 2.0 2002 – 2009 1984 96 130
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 Avant (8ED) 2.7 TDI 2004 – 2008 2698 132 180
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 100 136
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 171 233
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 125 170
AUDI A4 B7 Avant (8ED) 3.0 quattro 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 3.0 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 89 121
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 93 126
AUDI A4 B7 Avant (8ED) 2.7 TDi 2004 – 2008 2698 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 1.6 2004 – 2008 1595 75 102
AUDI A4 B7 Avant (8ED) 2.0 2004 – 2008 1984 96 130
AUDI A4 B7 Avant (8ED) 1.8 T 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 1.8 T quattro 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 3.2 FSI 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 3.2 FSI quattro 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 1.9 TDI 2004 – 2008 1896 85 116
AUDI A4 B7 Avant (8ED) 2.0 TDI 16V 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.5 TDI 2004 – 2008 2496 120 163
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 150 204
AUDI A4 B7 Avant (8ED) RS4 quattro 2004 – 2008 4163 309 420
AUDI A4 B7 Avant (8ED) S4 quattro 2004 – 2008 4163 253 344
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 125 170
AUDI A4 B7 Convertible (8HE) 3.2 FSI 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 3.2 FSI quattro 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 103 140
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A4 B7 Convertible (8HE) 2.0 TFSI 16V 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 2.7 TDI 2002 – 2010 2698 132 180
AUDI A4 B7 Convertible (8HE) RS4 quattro 2002 – 2010 4163 309 420
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 150 204
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 100 136
AUDI A4 B7 Convertible (8HE) 1.8 T 2002 – 2010 1781 120 163
AUDI A4 B7 Convertible (8HE) S4 quattro 2002 – 2010 4163 253 344
AUDI A4 B7 Convertible (8HE) 2.0 TFSI quattro 2002 – 2010 1984 147 200
