Braking System

Brake Hose

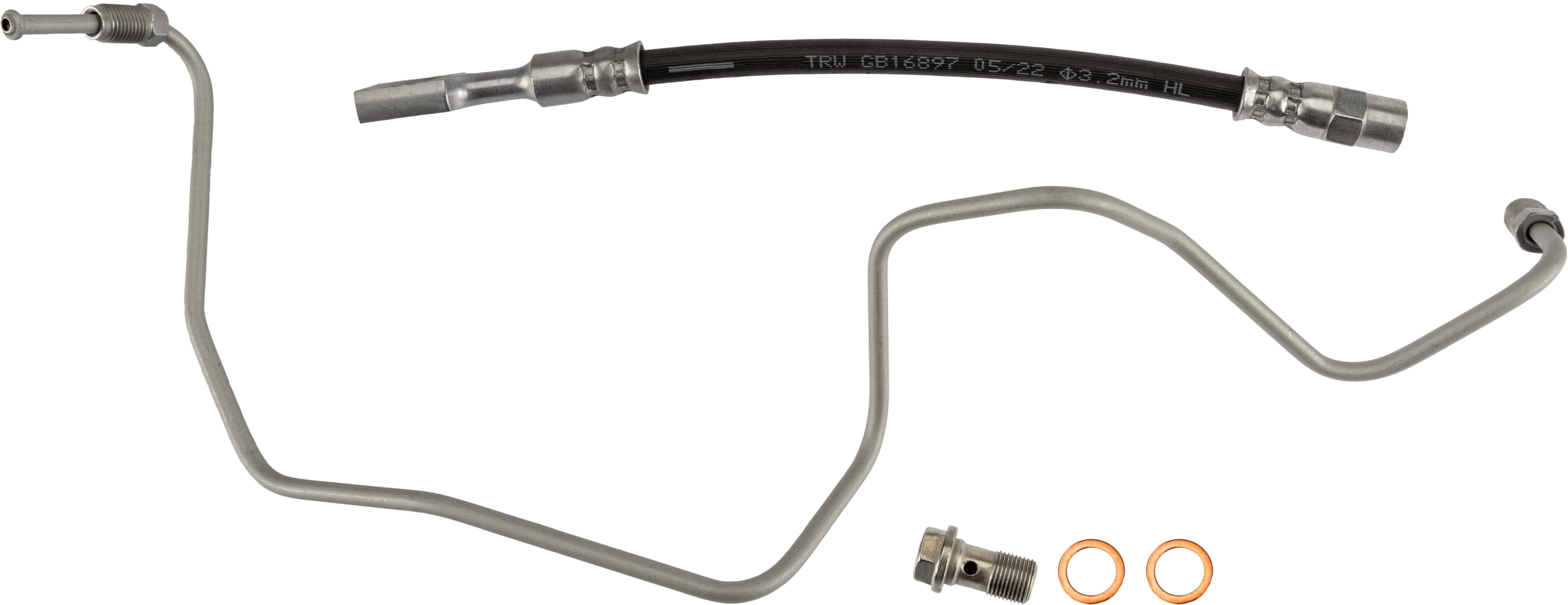

Name: Brake Hose
Brand: TRW
SKU: PHD941-TRW
Price: 4500.00 PHP
Availability: InStock

Part No. PHD941 · SKU PHD941-TRW

outer

₱4,500.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt/Nut Version Banjo Bolt
Length 2 (mm)	233
Length (mm)	335
Supplementary Article/Supplementary Info with gaskets/seals
Thread Size 1 M10x1
Thread Size 2 M12x1
Thread Type External Thread
Thread Type Internal Thread
Thread Type with external thread
Thread Type with internal thread

Bolt/Nut Version Banjo Bolt, Length 2 [mm] 233, Length [mm] 335, Supplementary Article/Supplementary Info with gaskets/seals, Thread Size 1 M10x1, Thread Size 2 M12x1, Thread Type External Thread, Thread Type Internal Thread, Thread Type with external thread, Thread Type with internal thread
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

VW1J0614749 FERODOFHY2517 BREMBOT85114 TRWPHD941 SPIDAN338944

Interchangeable Part Numbers

A.B.S.SL5745 ATE24125300103 BENDIX172721B BORG & BECKBBH7533 BOSCH1 987 481 338 Brake ENGINEERINGBH778671 BROVEX-NELSONH6685Q CEF518236 DELPHILH6828 FEBI BILSTEIN33019 FTE233E.865E.1.1 FTE9240397 GIRLING9004941 HELLA8AH 355 460-631 JURID172721J LPR6T48260 METZGER4119354 MEYLE100 525 0054/S NK8547113 OPTIMALBSL-4043 OPTIMALBSL-4044 ORIGINAL IMPERIUM61043 PAGID70829 REMKAFLEX3946 sbs13308547113 SWAG30933019 TEXTAR40015300 TRISCAN815029235 TRISCAN815029239

OE Numbers — AUDI

1J0 611 763 AD 1J0 611 763 D 1J0 611 763 F 1J0 611 763 K 1J0 611 763 R

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	140	190
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	134	182
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	134	182
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	168	228
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	140	190
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	120	163
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	180	245
AUDI	TT (8N3)	3.2 VR6 quattro	1998 – 2007	3189	184	250
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	110	150
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	165	224
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	132	180
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	132	180
AUDI	TT Roadster (8N9)	3.2 VR6 quattro	1999 – 2007	3189	184	250
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	165	224
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	132	180
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	140	190
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	140	190
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	120	163
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	134	182
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	132	180
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	168	228
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	110	150
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	134	182
