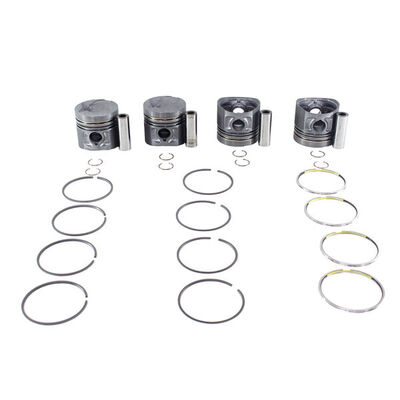

Piston
Crankshaft Drive

Piston

Part No. S0480330 · SKU S0480330-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Head Diameter (mm)26.0
Bolt Length (mm)74.0
Component Number 1. 3.00 XBE4
Component Number 2. 2.00 4
Component Number 3. 4.00 CB86
Compression Height (mm)48.35
Cylinder Bore (mm)90.9
Length (mm)81.9
Piston Clearance (mm)0.03
Production Number 91V13U1+A3
Bolt Head Diameter [mm] 26,0, Bolt Length [mm] 74,0, Component Number 1. 3.00 XBE4, Component Number 2. 2.00 4, Component Number 3. 4.00 CB86, Compression Height [mm] 48,35, Cylinder Bore [mm] 90,9, Length [mm] 81,9, Piston Clearance [mm] 0,03, Production Number 91V13U1+A3
Fits: MERCEDES-BENZ

OE Numbers — MERCEDES-BENZ

616 037 34 01
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ MB Van (W631) D (631.332, 631.342) 1988 – 1996 2399 53 72
MERCEDES-BENZ MB Van (W631) D (631.332, 631.342) 1988 – 1996 2399 55 75
MERCEDES-BENZ MB Van (W631) 2.0 D 1988 – 1996 1988 44 60
MERCEDES-BENZ MB Van (W631) 2.0 D 1988 – 1996 1988 45 61
MERCEDES-BENZ MB Van (W631) 2.4 D 1988 – 1996 2399 56 76
MERCEDES-BENZ MB Van (W631) 2.4 D 1988 – 1996 2399 61 83
