Specifications

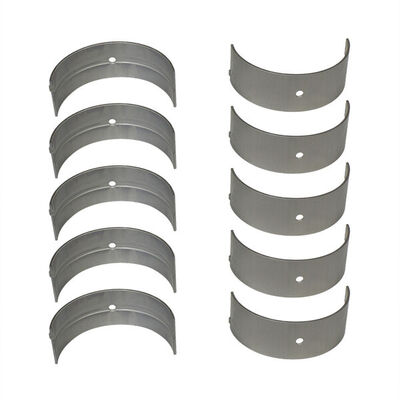

| Component Number 5SBC-446-P0.75, for bearing clearance from (mm) | 0.05. for housing diameter from [mm] 106.262. for shaft diameter from [mm] 101.598. for wall thickness from [mm] 2.659. to bearing clearance [mm] 0.118. to housing diameter [mm] 106.284. to shaft diameter [mm] 101.62. to wall thickness [mm] 2.671 |
| Width from (mm) | 40.0 |
Component Number 5SBC-446-P0.75, for bearing clearance from [mm] 0,05, for housing diameter from [mm] 106,262, for shaft diameter from [mm] 101,598, for wall thickness from [mm] 2,659, to bearing clearance [mm] 0,118, to housing diameter [mm] 106,284, to shaft diameter [mm] 101,62, to wall thickness [mm] 2,671, Width from [mm] 40,0
