Lubrication

Oil Filter

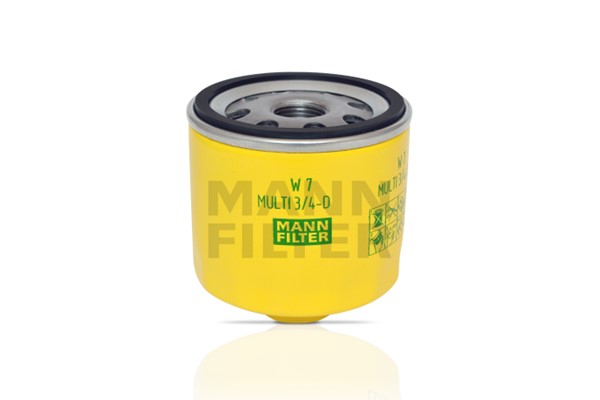

Name: Oil Filter
Brand: MANN-FILTER
SKU: W 7 MULTI 3/4-D-MANN-FILTER
Availability: OutOfStock

Part No. W 7 MULTI 3/4-D · SKU W 7 MULTI 3/4-D-MANN-FILTER

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bypass Valve Opening Pressure (bar)	2.5
EU Product Safety Regulation (GPSR) IEC 60417-6183 mechanical expertise required
Filter type Spin-on Filter
Gasket inside diameter (mm)	62
Gasket outside diameter (mm)	71
Height (mm)	88
Outer Diameter (mm)	76
Supplementary Article/Info 2 with one anti-return valve
Thread Size 3/4-16 UNF-2B

Bypass Valve Opening Pressure [bar] 2,5, EU Product Safety Regulation (GPSR) IEC 60417-6183 mechanical expertise required, Filter type Spin-on Filter, Gasket inside diameter [mm] 62, Gasket outside diameter [mm] 71, Height [mm] 88, Outer Diameter [mm] 76, Supplementary Article/Info 2 with one anti-return valve, Thread Size 3/4-16 UNF-2B
Fits: AUDI, CHEVROLET, DODGE, FORD, FORD USA, GURGEL, SEAT, VW

Interchangeable Part Numbers

BALDWINB178 FILTROS TECFILTM2 FLEETGUARDLF785 LUBERFINER PH2861 LUBERFINERPH2861 MAHLE OC295 MAHLEOC295 WIX FILTERS F51342 WIX FILTERSF51342 WIX FILTERS W57000-3/4 D WIX FILTERSW5700034D WIX FILTERSW51088 WIX FILTERSW51312 WIX FILTERSW51342 WIX FILTERSW54030BR WIX FILTERSWL57000-3/4-D

OE Numbers — VAG

030 115 561 H 030 115 561 T SPA115561

OE Numbers — VAG SPA

115 561

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
